BYHAND ARCHITECTS

Skip Floor Multi-household Timber House

Unjung-dong, Seongnam-si, Gyeonggi-do
New Construction
Location
Unjung-dong, Seongnam-si, Gyeonggi-do
Type
New Construction
Zoning
Class-1 District Unit Planning Zone / Class-1 Exclusive Residential Zone
Use
Detached House(Multi-household House)
Floors
B1 / 2F
Structure
Reinforced Concrete + Light-frame Timber
Site Area
238.30㎡
Building Area
69.54㎡
Gross Floor Area
252.00㎡
Building Coverage
49.45%
Floor Area Ratio
78.81%
Exterior Finish
Ceramic Siding, Zinc

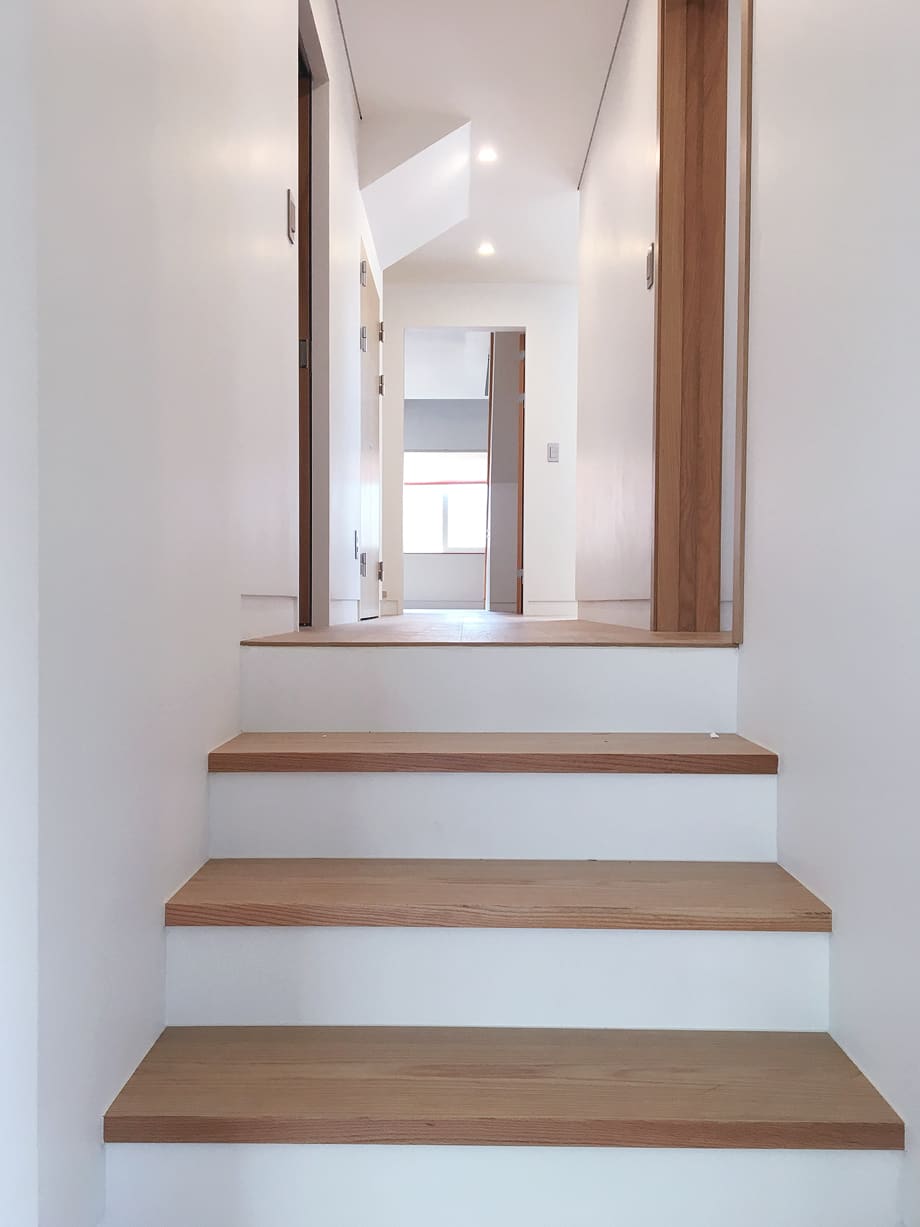

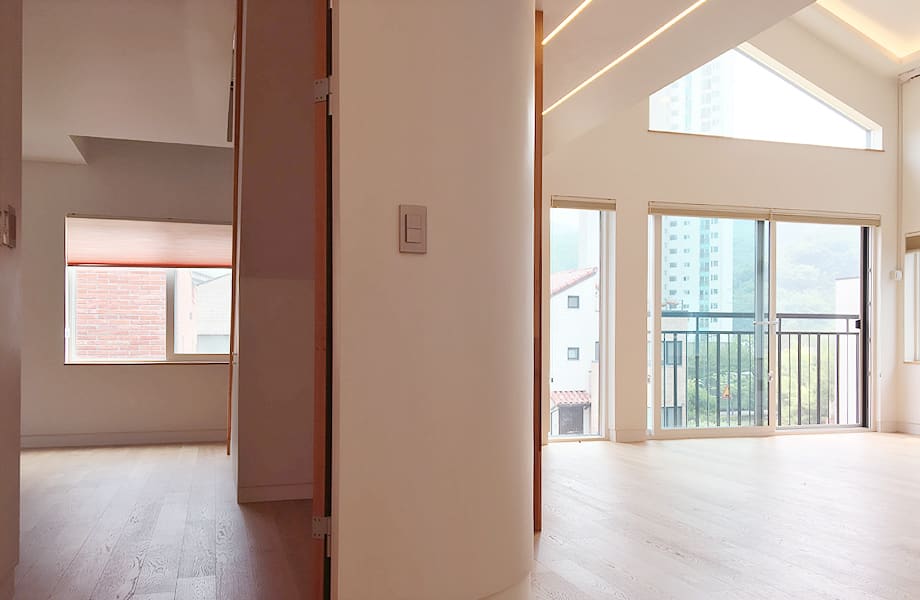

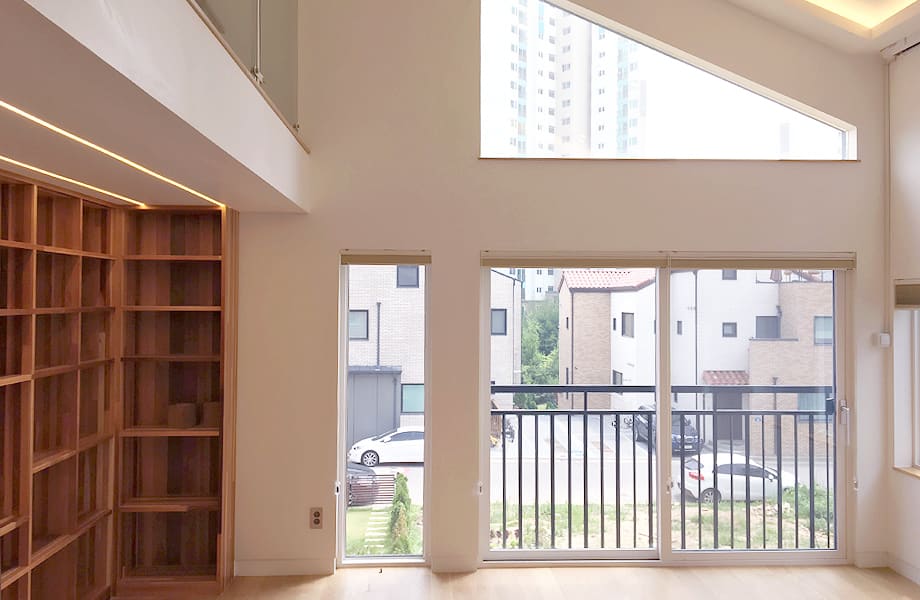

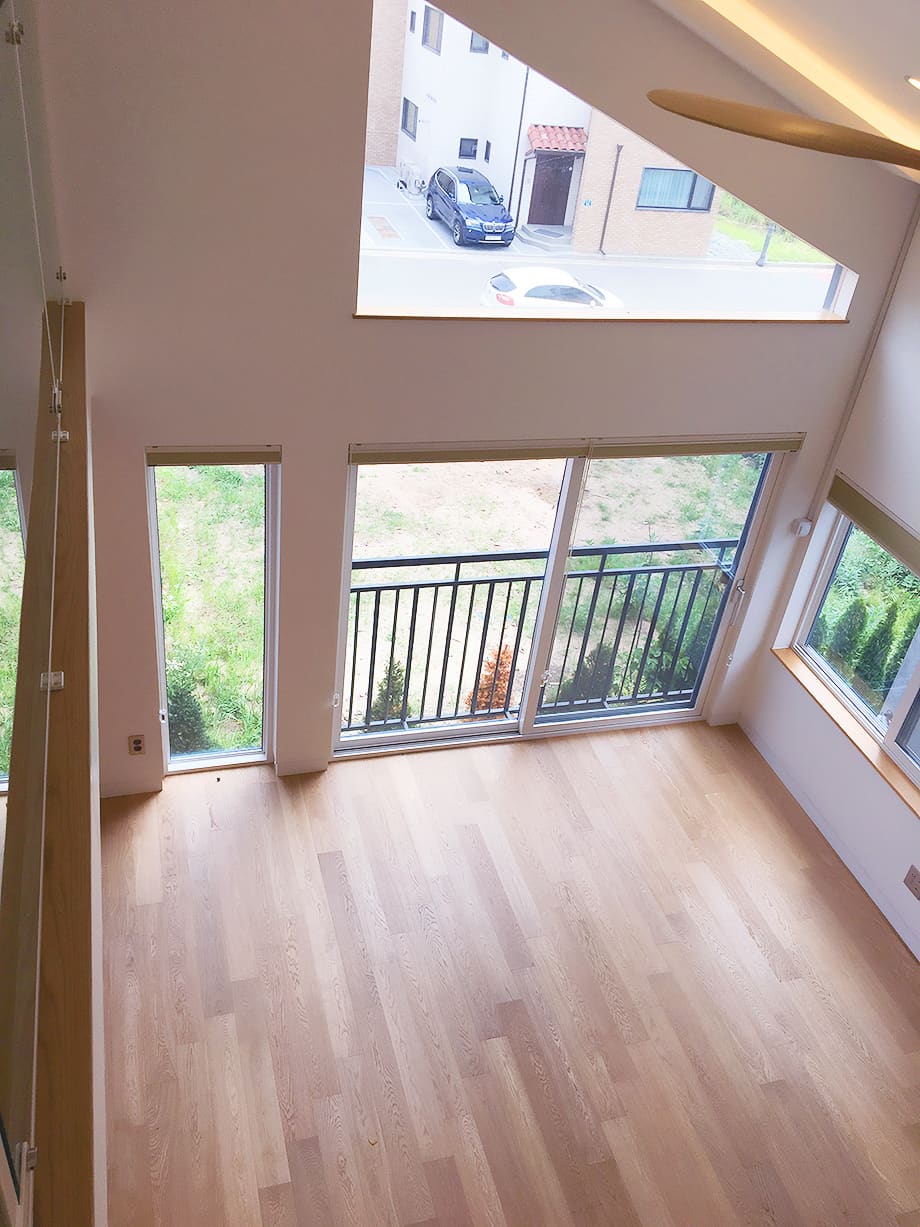

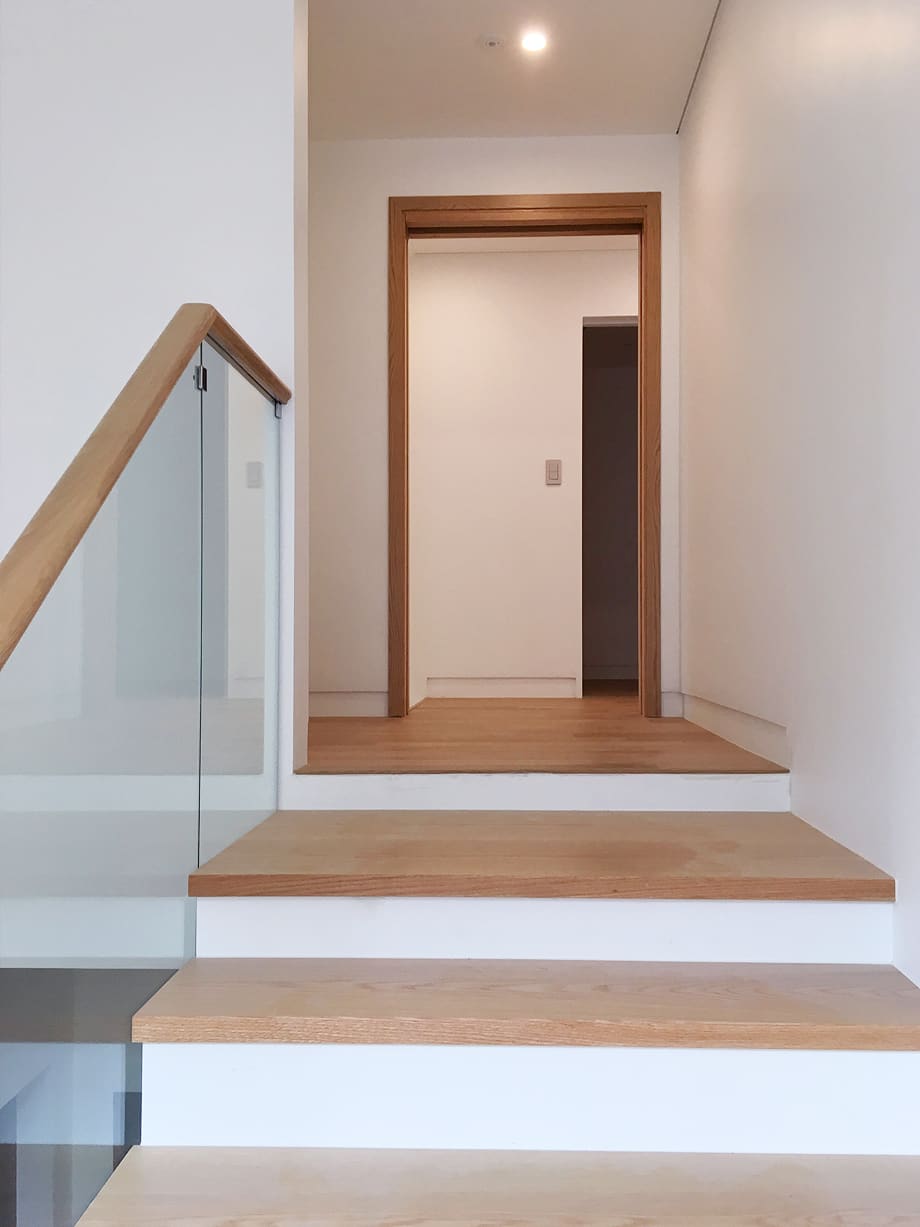

It is a long, narrow site within a district-unit-plan zone, with a 4 m road to the north and adjacent lots to the east, west, and south. A 2.5 m shared exterior open space had to be secured from the southern boundary line; given the site's nature of receiving sunlight-rights conditions from the south, the building was positioned as far north as possible while securing the most open space to the south. The basement was designed in concrete structure and the first floor and above in light-frame timber structure; floor-by-floor separation and a Skip Floor structure were applied together to achieve separation between units. The first-floor rental unit, which secured a 4 m floor height, was given level differences between the living room and each room through the Skip Floor structure, while the second-floor owner's unit secured a sense of openness through the connection between the second floor and the loft.

05 images
